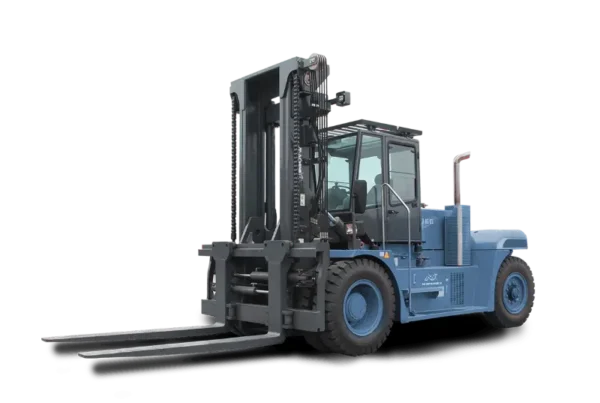

Machinex MX120DT Diesel Forklift

Built for Power, Engineered for Precision

The MX120DT from Machinex delivers outstanding lifting performance with a rated capacity of 12,000 kg and a load center of 1200 mm. Designed for heavy-duty industrial tasks, it features a pneumatic tire system for superior traction, a maximum lifting height of 3000 mm, and a robust diesel engine to maximize productivity across demanding environments. With an overall length of 5945 mm and a turning radius of 4300 mm, it offers excellent maneuverability despite its strength. The automatic drive system ensures smooth operation, while a 200-liter fuel tank supports extended work periods with minimal downtime.

Key Specs:

• Rated Capacity: 12,000 kg
• Max Lifting Height: 3000 mm
• Max Travel Speed (Loaded/Unloaded): 25/27 km/h
• Max Gradeability: 25% loaded
• Tire Size (Front/Rear): 10.00-20-16PR
• Operating Weight: 15,300 kg
• Drive Type: Automatic
• Brake System: Mechanical-hand brake lever

Machinex MX160DT Diesel Forklift

The Titan of Heavy Lifting

For operations that demand extreme strength, the MX160DT is the ultimate solution, offering a rated capacity of 16,000 kg. Equipped with a hydraulic gearbox and wet brake system, it ensures superior control and reliability even under the toughest working conditions. The MX160DT boasts a maximum lifting height of 4000 mm, a massive 250-liter fuel tank, and an extra-wide chassis (2560 mm) for unmatched stability. Its powerful 12.00-24-20PR tires and automatic-DANA transmission make it ideal for the most challenging heavy-duty applications.

Key Specs:

• Rated Capacity: 16,000 kg
• Max Lifting Height: 4000 mm
• Max Travel Speed (Loaded/Unloaded): 26/29 km/h
• Max Gradeability: 28% loaded
• Tire Size (Front/Rear): 12.00-24-20PR
• Operating Weight: 24,000 kg
• Drive Type: Automatic-DANA
• Brake System: Hydraulic release with push-button control
