860SJ Telescopic Boom Lift
Technical Specifications
| Dimensions | |
|---|---|
| Machine Height | 3.05 m / 10 ft |
| Machine Length | 12.19 m / 40 ft |
| Machine Width | 2.49 m / 8.2 ft |
| Reach Specifications | |
| Working Height | 28.21 m / 92.6 ft |
| Working Outreach | 23.51 m / 77.1 ft |
| Horizontal Outreach | 22.86 m / 75 ft |
| Performance | |
| Drive Speed – 4WD | 5.60 km/h / 3.5 mph |
| Gradeability – 4WD | 45% |
| Platform Capacity – Unrestricted | 230 kg / 507.1 lb |
| Swing | 360 Degrees (Continuous) |
| Power Source | |
| Auxiliary Power | 12 Volts DC |
| Fuel Tank Capacity | 117 L / 30.9 gal. |
| Engine Type – Diesel | DEUTZ TD2.9L Tier 4 Final 67 hp |
Make an enquiry
[pwb-brand]
More Products from This Brand
Description

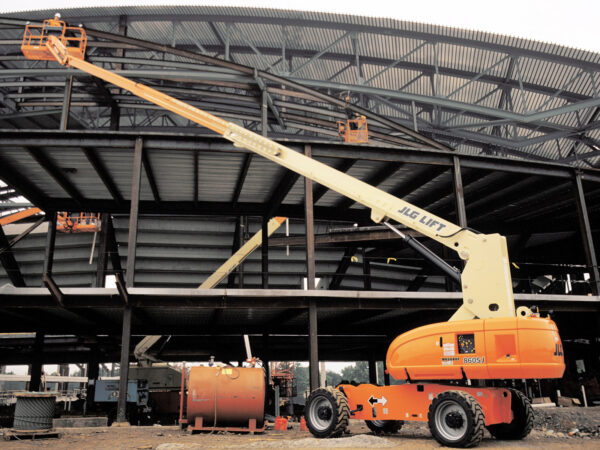

The JLG 860SJ Telescopic Boom Lift is an advanced aerial work platform designed for superior reach and efficiency. It features a high-performance boom with rapid elevation capabilities, making it ideal for demanding job sites. Equipped with a fuel-efficient Tier 4 engine, it reduces emissions while maintaining strong operational performance. The Advanced Design Electronics System (ADES) ensures improved fuel economy and lower overall maintenance costs. This model is well-suited for construction, maintenance, and industrial applications, providing enhanced productivity and safety for operators.
